| Standard type air cooling machine size parameters |
| Model | Length | Width | Height | Position size of the mounting hole | Drainage to take over the outer diameter | Space |
| L | B | H | D | E | E1 | E2 | E3 | F | W |
| DL-2/10 | 670 | 460 | 485 | 360 | 455 | / | / | / | 87 | G1" | 300 |
| DD-1.2/7 |
| DL-6.2/30 | 1300 | 460 | 485 | 360 | 1085 | / | / | / | 87 | G1" | 300 |
| DD-3.7/22 |
| DJ-2.6/15 |
| DL-12.3/60 | 1750 | 460 | 580 | 360 | 1455 | / | / | / | 107 | G1" | 350 |
| DD-7.0/40 |
| DJ-5.1/30 |
| DL-16.4/80 | 1920 | 580 | 630 | 470 | 1625 | 800 | / | / | 107 | G1" | 400 |
| DD-11.2/60 |
| DJ-6.8/40 |
| DL-28/125 | 2420 | 580 | 680 | 470 | 2025 | 665 | 665 | / | 107 | G1" | 450 |
| DD-18.7/100 |
| DJ-11.6/70 |
| DL-32.8/160 | 2720 | 580 | 680 | 470 | 2425 | 800 | 800 | / | 107 | G1" | 500 |
| DD-22.3/120 |
| DJ-14.3/85 |
| DL-37.9/185 | 3120 | 580 | 680 | 470 | 2825 | 700 | 700 | 700 | 107 | G1.5" | 500 |
| DD-26.2/140 |
| DJ-17.9/105 |
| DL-53.3/260 | 3520 | 630 | 680 | 520 | 3225 | 800 | 800 | 800 | 107 | G2" | 500 |
| DD-37.2/200 |
| DJ-23.9/140 |
| DL-83.6/410 | 3520 | 680 | 1020 | 570 | 3225 | 800 | 800 | 800 | 107 | G2" | 610 |
| DD-57.9/310 |
| DJ-35.8/210 |
Product Features:
D series air cooler is a complete library of cooling cooling equipment freon refrigeration unit used;by the use of temperature to sub-divided into DL,DD,DJ three series,can be separately applied to different storage temperature ,DL type air cooler mainly applied to the preservation of about 0℃,DD type air cooler is mainly applied to the refrigerator of -18℃,DJ type cooling fan is mainly applied to -25℃ or less frozen library.
The series has the following characteristics:
1.Designed for fresh,chilled and frozen;
2.The shell is made of high quality steel,powder coated,corrosion resistance,aesthetic appearance;
3.High-quality stainless steel electric heating tube evenly distributed in the coil,good defrosting effect, defrost using electric heating tube and finned aluminum casing hole close,easy to heat,long life;
4.Coil using the wrong row or parallel manner,using a mechanical expander, brass and aluminum so closely,good effect of heat transfer;
5.Cooler design width reasonable, blades and aluminum fin spacing is greater than 1/3 diameter of the blades to ensure there is enough effective air flow;
| Standard type air cooling machine size parameters |
| Model | Length | Width | Height | Position size of the mounting hole | Drainage to take over the outer diameter | Space |
| L | B | H | D | E | E1 | E2 | E3 | F | W |
| DL-2/10 | 670 | 460 | 485 | 360 | 455 | / | / | / | 87 | G1" | 300 |
| DD-1.2/7 |
| DL-6.2/30 | 1300 | 460 | 485 | 360 | 1085 | / | / | / | 87 | G1" | 300 |
| DD-3.7/22 |
| DJ-2.6/15 |
| DL-12.3/60 | 1750 | 460 | 580 | 360 | 1455 | / | / | / | 107 | G1" | 350 |
| DD-7.0/40 |
| DJ-5.1/30 |
| DL-16.4/80 | 1920 | 580 | 630 | 470 | 1625 | 800 | / | / | 107 | G1" | 400 |
| DD-11.2/60 |
| DJ-6.8/40 |
| DL-28/125 | 2420 | 580 | 680 | 470 | 2025 | 665 | 665 | / | 107 | G1" | 450 |
| DD-18.7/100 |
| DJ-11.6/70 |
| DL-32.8/160 | 2720 | 580 | 680 | 470 | 2425 | 800 | 800 | / | 107 | G1" | 500 |
| DD-22.3/120 |
| DJ-14.3/85 |
| DL-37.9/185 | 3120 | 580 | 680 | 470 | 2825 | 700 | 700 | 700 | 107 | G1.5" | 500 |
| DD-26.2/140 |
| DJ-17.9/105 |
| DL-53.3/260 | 3520 | 630 | 680 | 520 | 3225 | 800 | 800 | 800 | 107 | G2" | 500 |
| DD-37.2/200 |
| DJ-23.9/140 |
| DL-83.6/410 | 3520 | 680 | 1020 | 570 | 3225 | 800 | 800 | 800 | 107 | G2" | 610 |
| DD-57.9/310 |
| DJ-35.8/210 |
Product Tags:
|
|

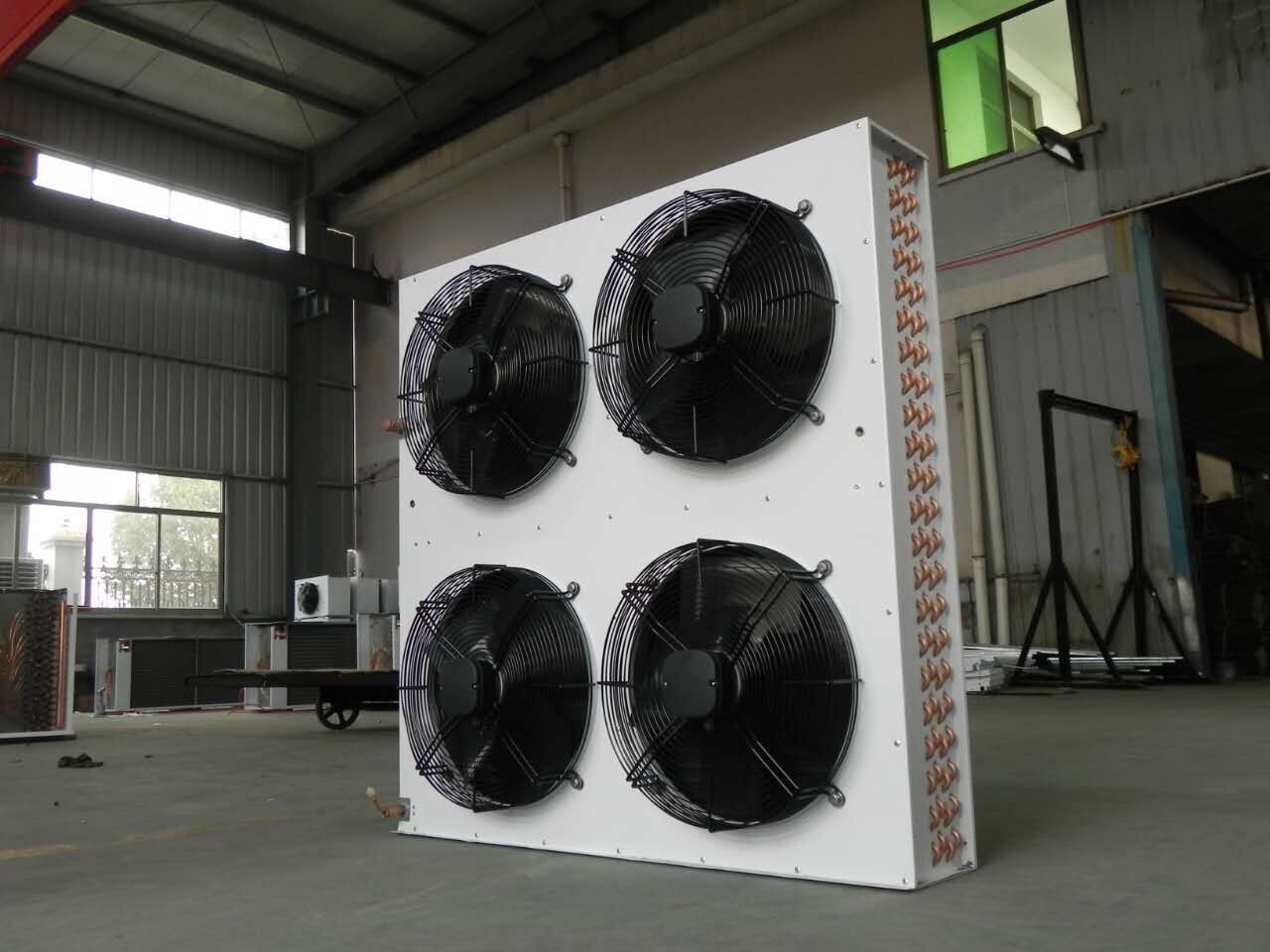

24000W Standard Air Cooled Condenser In Refrigeration , Corrosion Resistance DD-37.2/200 Images
|
