Unit - Spb03kl Air Cooled Condensing Unit for Model 2ces-3y

Brand Name : RFJ

Model Number : Spb03kl

Certification : CC

Place of Origin : China

MOQ : 1piece

Price : discussed

Payment Terms : T/T, Western Union

Supply Ability : 10000pieces

Delivery Time : 3-7 days

Packaging Details : wooden packaging

Color : Blue

Power Supply : 380V 3pH 50Hz

Cooling Capacity : 15.61kw

Input Power : 6.44kw

Original : China

Tyoe : condensing unit

OEM service : Yes

Contact Now

Air Cooled Compressor Condensing Unit-SPB03KL for model 2CES-3Y

Product Description
Fan speed regulator:
Adjust condensing fan according to condensing temp.
Operation data display function:
To check important data such as current of compressor, and condensing temp.
System alarm function:
When fault effects, the system will make alarm sound to remind user
Independent Operation board:
1. For temp. showing, defrosting controlling, operation system data checking and temp. alarming
2. Can be installed anywhere available.

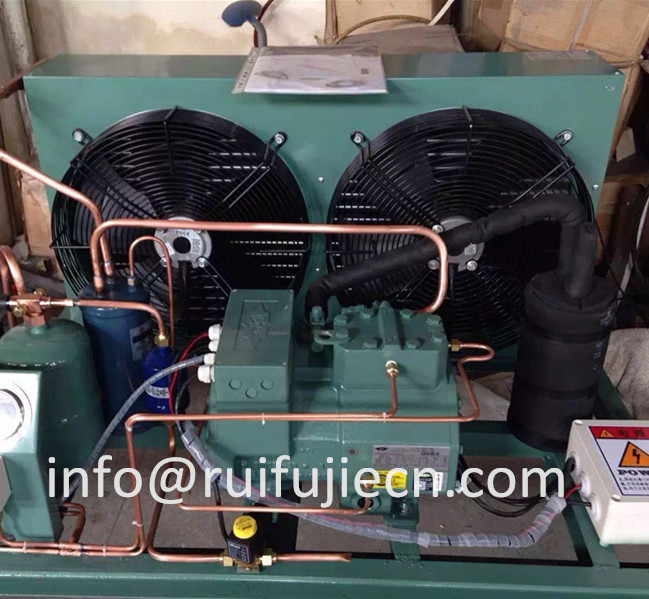

2.Picture

Unit - Spb03kl Air Cooled Condensing Unit for Model 2ces-3y

3.Technical

Installation Size Of Air Cooled Compressor Condensing Unit
Installation Size For Air-Cooled Compressor Condensing Unit with medium&LowTemperature
Condensing Unit model	Compressor Model	Overall Size(mm)
		L(A)	W(B)	H(C)
SPB03KL	2CES-3Y	780	680	700
SPB04KL	4EES-4Y	780	680	700
SPB05KL	4DES-5Y	880	760	800
SPB06KL	4CES-6Y	880	760	800
SPB09KL	4TES-9Y	1130	760	700
SPB12KL	4PES-12Y	1130	760	700
SPB14KL	4NES-14Y	1130	760	800
SPB18KL	4HE-18Y	1340	860	760
SPB23KL	4GE-23Y	1490	860	960
SPB28KL	6HE-28Y	1590	860	960
SPB34KL	6GE-34Y	1590	860	1360
SPB44KL	6FE-44Y	1190	360	860

4.FAQ

* Why we choose such big compressor horsepower?

Fresh food has a lot of heat and need the big compressor horsepower to cool down within 4-6 hours.

* Why the temperature is so low?

Fresh food need to reach -20C within 4-6 hours so that need -35C or -40C cold room temperature.

* Why does the blast cold room need to use the vertical air cooler?

The vertical air cooler have big fin spacing, big air flow and very easy to install.

* Can the blast freezer cooling time be shorter?

4-6 hours is fast enough and very economical. 2-3 hours will need even bigger horsepower compressor and more expensive.
